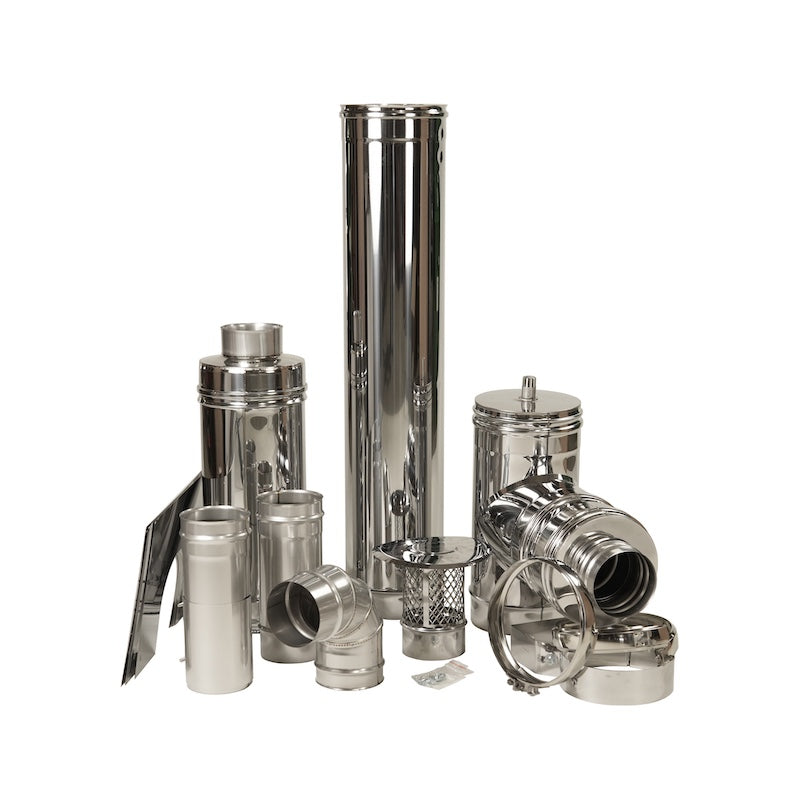

• A set of chimney pieces used for wood-burning sauna stoves that have a chimney through the sauna wall.
1 1

Through Wall High Chimney Kit

Through Wall High Chimney Kit

$932.00 CAD
$932.00 CAD
Sale Sold out
Shipping calculated at checkout.

A complete insulated chimney kit designed for safely venting your wood-burning sauna heater through the wall. Includes all necessary components for a secure, water-tight installation. Accommodates chimneys that exit from the top of the sauna heater. Works with most brands of heaters (115mm/4.5" diameter outlet).

Specifications

• Double wall
• 1 3/4" insulation
• Accepts 4 1/2"(115mm) heater exit
• CE certified
• Elbow connection
• Chimney is 8" outside diameter allowing for 1 3/4" of insulation around the outside.

Dimensions

• Overall height: X" from top of heater
• Heater connection diameter: 4 1/2″ (115mm)

What's Included?

• Chimney stack cap
• Top mount tip
• Finishing/trim plate
• Wall bracket
• Two double-wall chimneys
• Two single-wall chimney
• Insulated lower tip
• Drain plug
• Double-wall chimney tee
• Single-wall chimney elbow
• Elbow connector
